Automatic Sprinkler System Design Rules

Automatic sprinkler systems are life safety and property protection systems that must be designed in strict accordance with recognized standards such as NFPA 13. Proper sprinkler design is not limited to selecting pipe sizes or placing sprinkler heads; it requires systematic evaluation of building hazard classification, sprinkler spacing, hydraulic demand, zoning, and installation requirements. The following sprinkler design rules summarize the fundamental principles used in professional fire protection engineering practice, based on NFPA 13 provisions and practical hydraulic design experience.

HYDRAULIC CALCULATIONS BASICS IN FIRE SPRINKLER SYSTEMS

Hydraulic calculations are the backbone of fire sprinkler system design. They ensure that the required water flow and pressure reach the most hydraulically remote sprinkler head under worst-case fire conditions. These calculations determine system demand, pipe sizing, friction loss, pump capacity, density requirements, and remote area selection in accordance with NFPA 13 standards. By applying fundamental equations such as the sprinkler discharge formula (Q = K√P) and the Hazen-Williams friction loss formula, engineers can accurately model real-world system performance and verify that the sprinkler system will operate effectively during a fire emergency.

Merge Result_Page_1
Merge Result_Page_2

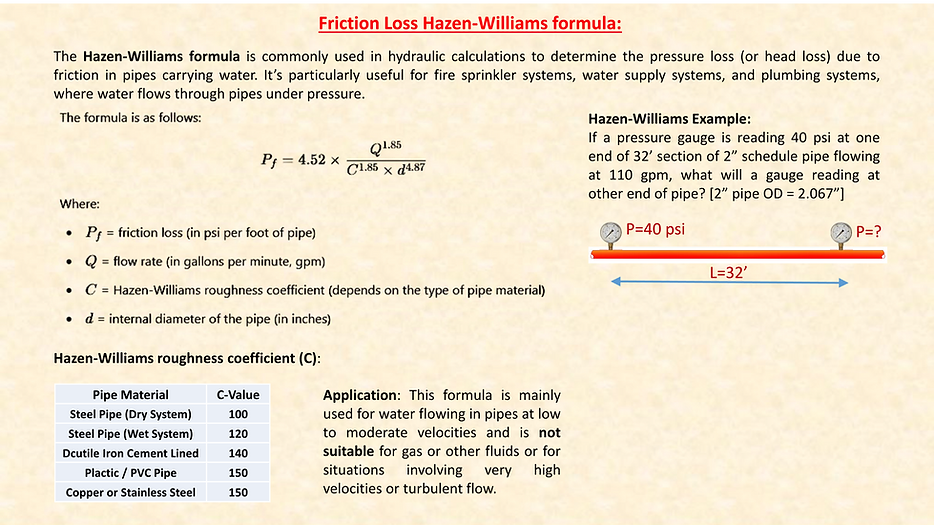

Merge Result_Page_3
Merge Result_Page_4
Merge Result_Page_5
Merge Result_Page_6
Merge Result_Page_7
Merge Result_Page_8

🔷 Conclusion

Hydraulic calculations transform a sprinkler layout into a fully engineered life-safety system. They validate water demand, confirm pressure availability at the most remote location, establish correct pipe diameters, and determine pump and tank sizing requirements. Proper understanding of density, remote area adjustments, friction losses, and sprinkler spacing ensures compliance with NFPA 13 and guarantees system reliability. Without hydraulic calculations, a sprinkler system is only theoretical — with them, it becomes a proven fire protection solution.
